Rigging Hardware: The Core Support for Industrial Lifting and Hoisting

In industrial production, logistics, transportation, construction, and other fields, lifting and hoisting operations remain crucial for efficient process execution. Rigging hardware, as the core component connecting lifting equipment to the load being hoisted, directly determines operational safety and efficiency through its performance and reliability. As modern industry demands ever-increasing precision, load-bearing capacity, and safety standards, rigging hardware has evolved from traditional basic connection components into a specialized product system integrating materials science, structural engineering, and safety design, becoming an indispensable and crucial supporting equipment for the industrial sector.

I. Core Categories and Functional Characteristics of Rigging Hardware

Rigging hardware encompasses a range of hardware components used to secure, connect, adjust, and cushion loads. Different product categories exhibit significant differences in structural design and performance, depending on the specific application scenario. Among them, shackles, as the most basic and commonly used type, are primarily used to connect wire ropes, chains, and lifting hooks. Their core advantage lies in their quick installation and removal. Furthermore, through a well-designed mechanical structure, they evenly distribute the load, avoiding the risk of breakage caused by localized stress concentration.

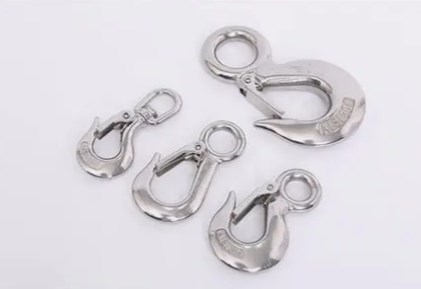

Hooks, as key components that come into direct contact with the load, must be designed to provide both high strength and anti-drop protection. Common hook heads feature safety tabs to prevent the load from accidentally falling during lifting. Depending on the load capacity required, hooks can be categorized as single or double. Single hooks offer a simpler structure and lighter weight, making them suitable for small and medium loads. Double hooks, with their symmetrical load-bearing design, can withstand greater loads and are primarily used for heavy industrial lifting. The hook's opening size and curvature radius must match the shape of the load to ensure sufficient contact area and prevent localized pressure from damaging the load or deforming the hook.

Rope clamps and wire rope sleeves are also important components of rigging hardware, primarily used to secure and connect wire ropes. A wire rope clamp secures the ends or branches of a wire rope together using bolts. The clamping force must be precisely calculated based on the wire rope's diameter and material. It's crucial to ensure sufficient tightness to prevent slippage while also avoiding excessive tightening that could cause deformation or damage. A wire rope loop is a loop-shaped structure formed by specially processing the wire rope end to facilitate connection to other rigging hardware components. Common processing methods include pressing and splicing. Different processing methods have different load capacities and service lives, so the appropriate type should be selected based on actual operational requirements.

Second, the key to selecting rigging hardware: Safety and compatibility first.

When selecting rigging hardware, safety is always the primary consideration, and load capacity is the core indicator of safety performance. Each rigging hardware product has a specific load rating. When selecting a rigging hardware product, ensure that the actual load does not exceed the rated value. Also, consider the dynamic load factor. During lifting and hoisting, the lifting, lowering, and braking of a load generate inertia, causing the actual load to exceed the static load. Therefore, an appropriate dynamic load factor should be selected based on the dynamic characteristics of the operation. Typically, the dynamic load factor should be between 1.2 and 2.0. The specific value should be determined based on the operating speed, load type, and operating method.

Material selection is also a key factor in rigging hardware selection. Different materials vary significantly in strength, toughness, and corrosion resistance. Currently, mainstream rigging hardware materials on the market include high-quality carbon structural steel, alloy structural steel, and stainless steel. High-quality carbon structural steel offers excellent strength and ductility, is relatively affordable, and is suitable for generally dry, non-corrosive operating environments. Alloy structural steel, by adding alloying elements (such as manganese, chromium, and nickel), further enhances its strength and toughness, making it suitable for medium-to-heavy loads and moderately corrosive environments. Stainless steel offers excellent corrosion resistance and is particularly suitable for highly corrosive industries such as the chemical, marine, and food processing industries. However, its cost is relatively high, so the choice should be balanced between the severity of the operating environment and your budget.

Suitability of the operating environment is also crucial. In addition to corrosive environments, factors such as temperature, humidity, and dust can also affect the performance of rigging hardware. In high-temperature environments (such as those in the metallurgical and foundry industries), the strength of rigging hardware decreases as the temperature rises. Therefore, it is important to select high-temperature-resistant materials and appropriately reduce the upper load rating. In low-temperature environments (such as outdoor work in cold regions), some metals can become brittle at low temperatures, resulting in reduced toughness and increased risk of fracture. Therefore, it is important to select materials with improved low-temperature toughness or to pre-treat the products at low temperatures. In dusty environments (such as mining and construction), rigging hardware with good sealing properties is essential to prevent dust from entering the components and affecting their flexibility. Daily cleaning and lubrication maintenance are also essential to extend the product's lifespan.

III. Rigging Hardware Industry Development Trends: Intelligence and Green Go Hand in Hand

With the advancement of intelligent industrial manufacturing, the rigging hardware industry is also gradually moving towards intelligence, with the application of intelligent monitoring technology becoming a key trend. Traditional rigging hardware relies primarily on regular manual inspections to assess performance, which is not only inefficient but also prone to safety hazards due to negligence. Smart rigging hardware products, by integrating sensors (such as strain gauges, temperature sensors, and vibration sensors), can monitor key parameters such as load, temperature, and vibration in real time during operation and transmit this data to the control system. If any parameters exceed safe ranges, the system will immediately issue a warning signal, prompting the operator to promptly stop the machine for inspection, effectively preventing accidents.

Green and sustainable development are also key development directions for the rigging hardware industry. On the one hand, in terms of material selection, more and more companies are turning to recyclable and environmentally friendly materials, reducing reliance on non-renewable resources and minimizing environmental pollution during production. On the other hand, in terms of production processes, energy consumption and waste emissions are reduced by optimizing forging, heat treatment, and surface treatment. For example, low-temperature heat treatment is being used instead of traditional high-temperature processes, reducing energy consumption and emissions. Chromium-free passivation is being used instead of traditional chromate passivation to avoid heavy metal pollution.

IV. Routine Maintenance of Rigging Hardware: The Key to Extending Lifespan and Ensuring Safety
Even after selecting the right rigging hardware, routine maintenance and inspection remain crucial to ensuring safe operation and extending its lifespan. During routine maintenance, cleaning is essential. Regularly remove dust, oil, rust, and other impurities from the surface of rigging hardware. This is especially true for moving parts (such as shackle pins and hook bearings). These must be kept clean to prevent impurities from affecting their mobility. Lubrication is essential. Selecting an appropriate lubricant based on the material and operating environment reduces friction and wear, thereby increasing component flexibility and service life. Finally, corrosion protection is essential. For rigging hardware used in corrosive environments, the integrity of the surface anti-corrosion coating must be regularly inspected. If damage is found, repair or re-coat the coating promptly to prevent rust.

During routine inspections, a regular inspection system should be established, with inspection intervals (e.g., daily, weekly, monthly, etc.) determined based on operating frequency and environmental conditions. Inspections primarily include: a visual inspection to check for defects such as deformation, cracks, wear, and rust on rigging hardware; a dimensional inspection to measure key dimensions (such as the hook opening and the shackle pin diameter) to determine if they exceed allowable tolerances; and a performance inspection to test the flexibility of moving parts and verify the integrity and effectiveness of safety devices (such as the hook's safety tab). If any issues are found during the inspection, the product must be immediately discontinued for repair or replacement. It can only be put back into service after the problem has been resolved. Rigging hardware that presents safety hazards is strictly prohibited.

As a core supporting component for industrial lifting and hoisting operations, rigging hardware comes in a wide variety of styles and functions. When selecting a model, factors such as load capacity, material properties, and the operating environment must be comprehensively considered. Regular maintenance and inspection are essential to ensure safe operation. With the continuous integration of intelligent and green technologies, the rigging hardware industry will usher in new development opportunities, providing stronger support for safe, efficient, and sustainable development in the industrial sector.
