READ MORE7X19 [6x19+IWS] Stainless Steel Wire Rope Product Introduction
Overview: The 7X19 [6x19+IWS] stainless steel wire rope is a high-performance wire rope designed for applications that require maximum strength, flexibility, and durability. Composed of 7 strands, each with 19 individual wires, and featuring a 6x19 construction with an Independent Wire Strand (IWS) design, this wire rope offers superior resistance to abrasion, wear, and corrosion. It is commonly used in industries such as marine, construction, aerospace, and transportation, where heavy-duty performance and reliable operation are essential.
Key Features:
Exceptional Strength and Durability
The 7X19 [6x19+IWS] wire rope is engineered for high tensile strength, making it ideal for heavy-duty applications. With 7 strands and 19 wires per strand, it provides a robust structure that is capable of bearing large loads, ensuring safety and efficiency in demanding tasks.
Enhanced Flexibility
Thanks to its 6x19 strand construction with an Independent Wire Strand (IWS) design, this wire rope offers excellent flexibility. The IWS design allows for easier bending around pulleys and sheaves without compromising strength, making it perfect for dynamic applications that involve frequent movement and tension.
Corrosion and Abrasion Resistance
Made from high-quality stainless steel (304, 316, or 316L), the 7X19 wire rope exhibits outstanding resistance to corrosion, rust, and environmental degradation. This makes it well-suited for outdoor, marine, and industrial applications exposed to moisture, saltwater, or harsh chemicals.
Independent Wire Strand (IWS) Design
The IWS construction in the 6x19+IWS design increases the rope's ability to withstand abrasion and wear, making it more durable than other wire rope constructions. This feature also enhances the rope's flexibility, making it easier to handle and install in tight spaces.
Long Service Life
The 7X19 [6x19+IWS] stainless steel wire rope offers a long service life, even under constant use in tough environments. Its resistance to fatigue, corrosion, and wear minimizes the need for frequent maintenance, making it a cost-effective solution over time.
Smooth Surface Finish
The smooth surface of the wire rope reduces friction when passing through pulleys or other components, extending the lifespan of both the rope and the equipment. The smooth finish also contributes to the rope’s aesthetic appeal.
Applications:
Marine and Offshore
Due to its high corrosion resistance and durability, the 7X19 [6x19+IWS] stainless steel wire rope is ideal for marine and offshore applications. It is commonly used for mooring, anchoring, and securing cargo, where exposure to saltwater is a concern.
Construction and Rigging
This wire rope is frequently used in construction and rigging operations, particularly for heavy lifting, hoisting, and securing equipment. The flexibility and strength of the 7X19 construction make it perfect for cranes, hoists, and other machinery in construction environments.
Aerospace
The 7X19 stainless steel wire rope is utilized in aerospace applications for cable systems, control lines, and suspension systems. Its strength, flexibility, and resistance to fatigue make it ideal for the rigorous demands of the aerospace industry.
Industrial and General Lifting
Used in a variety of industrial applications, including material handling, winches, and lifts, the 7X19 wire rope provides a reliable and flexible solution for heavy-duty lifting and securing operations.
Transportation and Logistics
In the transportation and logistics sectors, the 7X19 stainless steel wire rope is used for securing cargo and securing equipment. Its combination of strength and flexibility ensures reliable load handling and tensioning in transit.

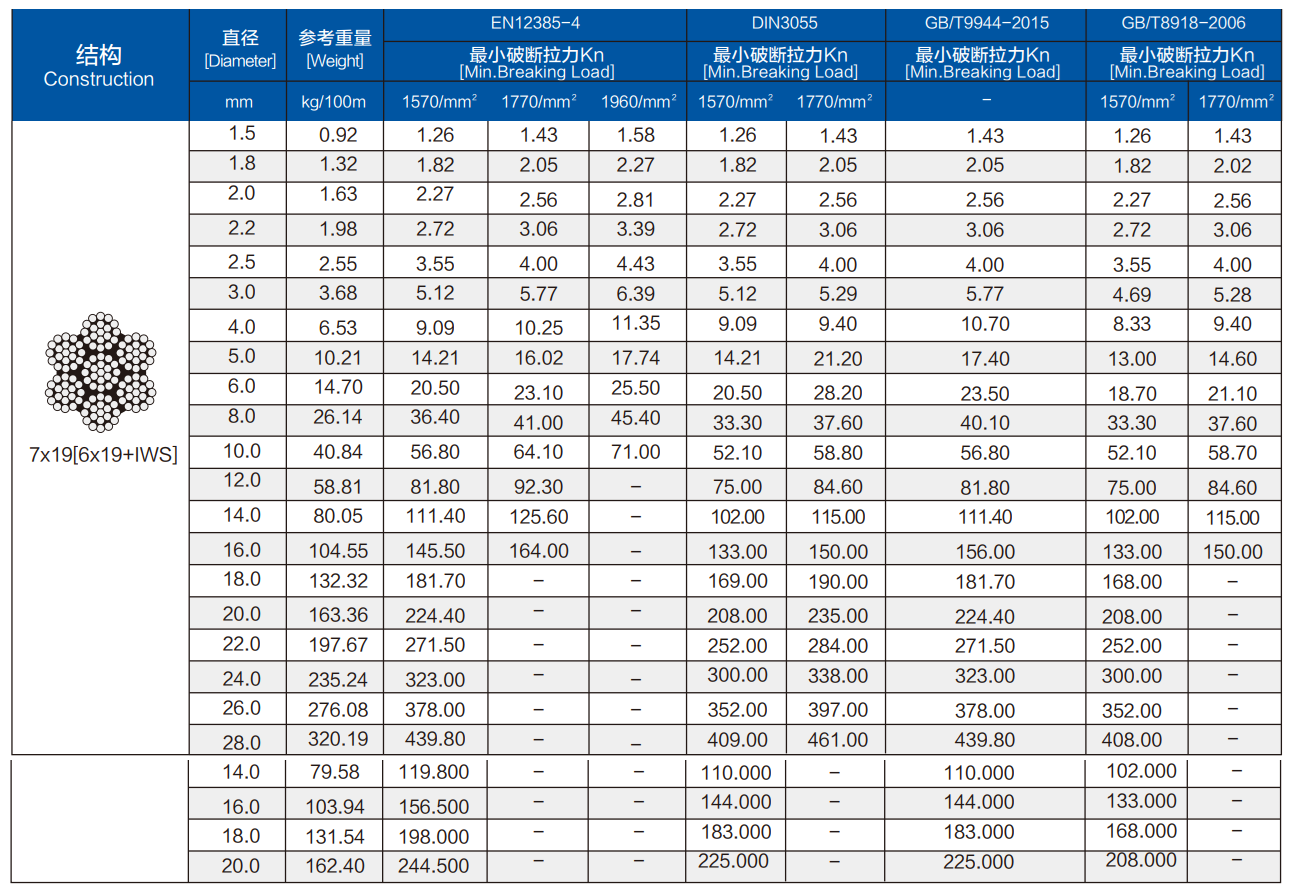

Specifications:
Construction: 7X19 (7 strands, each with 19 wires) with 6x19 + IWS (Independent Wire Strand) design
Material: Stainless Steel (304, 316, 316L)
Diameter: Available in a wide range of sizes, from small (1mm) to large (20mm or more), with custom diameters available upon request.
Breaking Strength: Rated for heavy-duty applications, with breaking strengths varying according to the rope diameter.
Surface Finish: Bright, polished, or passivated finish for enhanced corrosion resistance and smooth operation.
Quality Control: The 7X19 [6x19+IWS] stainless steel wire rope undergoes strict quality control processes to ensure that it meets or exceeds international standards such as ISO, ASTM, and DIN. Each rope is tested for tensile strength, flexibility, fatigue resistance, and corrosion resistance to ensure superior performance in all applications.
Conclusion: The 7X19 [6x19+IWS] stainless steel wire rope is a high-strength, flexible, and durable solution for a wide range of demanding applications. Its combination of robust construction, corrosion resistance, and long service life makes it an excellent choice for marine, industrial, construction, and aerospace industries. Whether used for lifting, rigging, or securing, the 7X19 wire rope provides reliability and performance you can trust, even in the harshest environments.
